Description

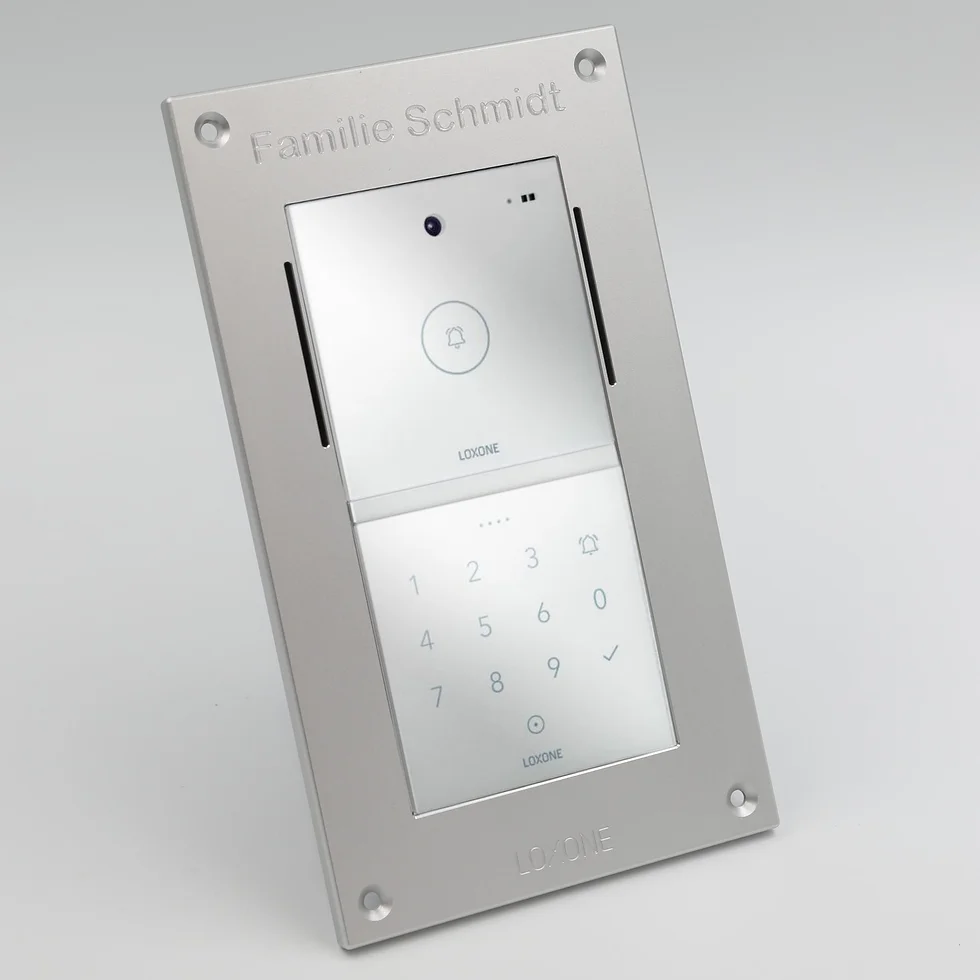

Door intercom with video and audio module for the automation controller

Ideally suited for single-family houses, apartments, offices and other one-party buildingscompatible with other access products such as the NFC Code Touch or a motor lockwith integrated 120 ° HD camera and UV-coated real glass surfacewith hidden speakers, MEMS digital microphone and text-to-speech functionwith infrared proximity sensor and illuminated bell buttonsimple surface mounting thanks to the appropriate mounting frame (silver or anthracite, single or double)pluggable loop-through terminals for voltage and bus suppliesintegrated Loxone Tree interface for 50 Loxone Tree devicesincluding free updatesincluding diagnostic inputs for online status, temperature shutdown and sabotage monitoringCommunication with automation controller via LAN

Technical data:

Power supply: Power over Ethernet (PoE), typ. 48V DC

Integration of up to 50 Loxone Tree devices with a maximum cable length of 3m

Power supply for external devices: 24VDC, max 3W with a maximum cable length of 3m

Camera resolution: 1280 x 720 at 120 ° Image acquisition angle

Detection area proximity sensor: 0.2 – 2m at 27 °

splash-proof IP44

Dimensions: 90 x 90 x 16 mm
