Description

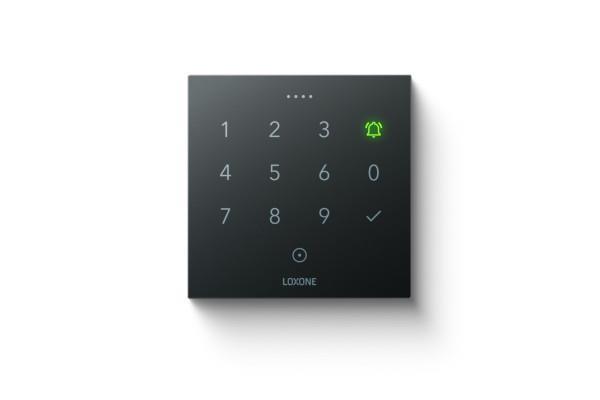

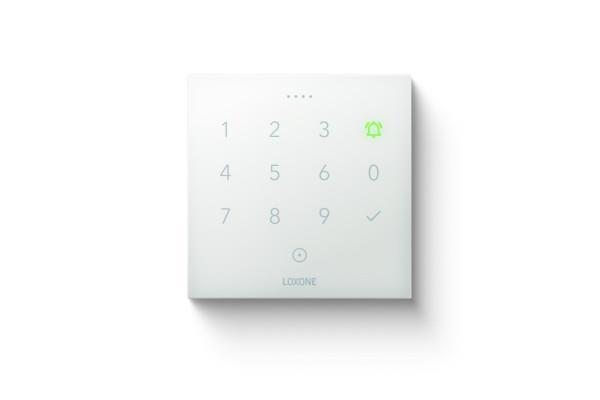

NFC Code Touch Tree – White / Black Code button and NFC reader made of real glass for automation control.

An ideal access solution for front doors, garages, lockers, or accounting systems, this device allows for permanent, one-time, and time-based codes to be assigned. It also supports two-factor authentication using a code and NFC chip, making it perfect for new buildings.

Key features include:
– 12 illuminated touchpoints (0-9, confirmation, and bell) with acoustic click feedback
– Integrated NFC reader for reading NFC chips
– Satin real glass surface that resists fingerprints
– Four controllable LEDs
– Easy installation without the need for a flush-mounted box (can be perfectly combined with Intercom)
– Weatherproof design, suitable for both indoor and outdoor use
– Seamless integration with Loxone Tree device search
– Pluggable loop-through clamp for power supply and bus communication
– Free updates and diagnostic input for online status monitoring
– Secure communication with the automation controller via encrypted and tamper-proof Loxone Tree wiring technology

Technical Data:
– Power supply: 24V DC
– 12 touchpoints with capacitive touch detection and acoustic feedback
– NFC: unencrypted (ISO / IEC 14443, fixed UID) or encrypted (MIFARE® DESFire® EV1 chip)

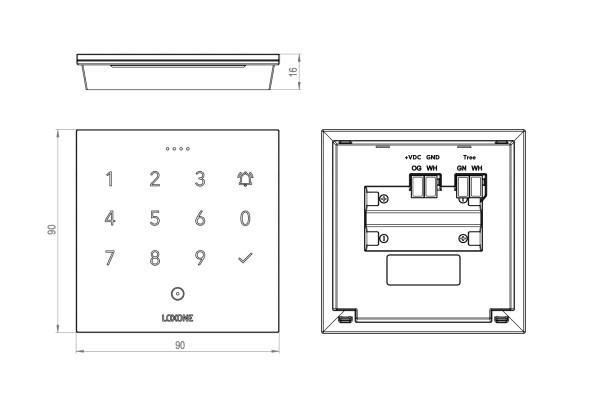

– Dimensions: 90 x 90 x 16 mm
